Beidou Module

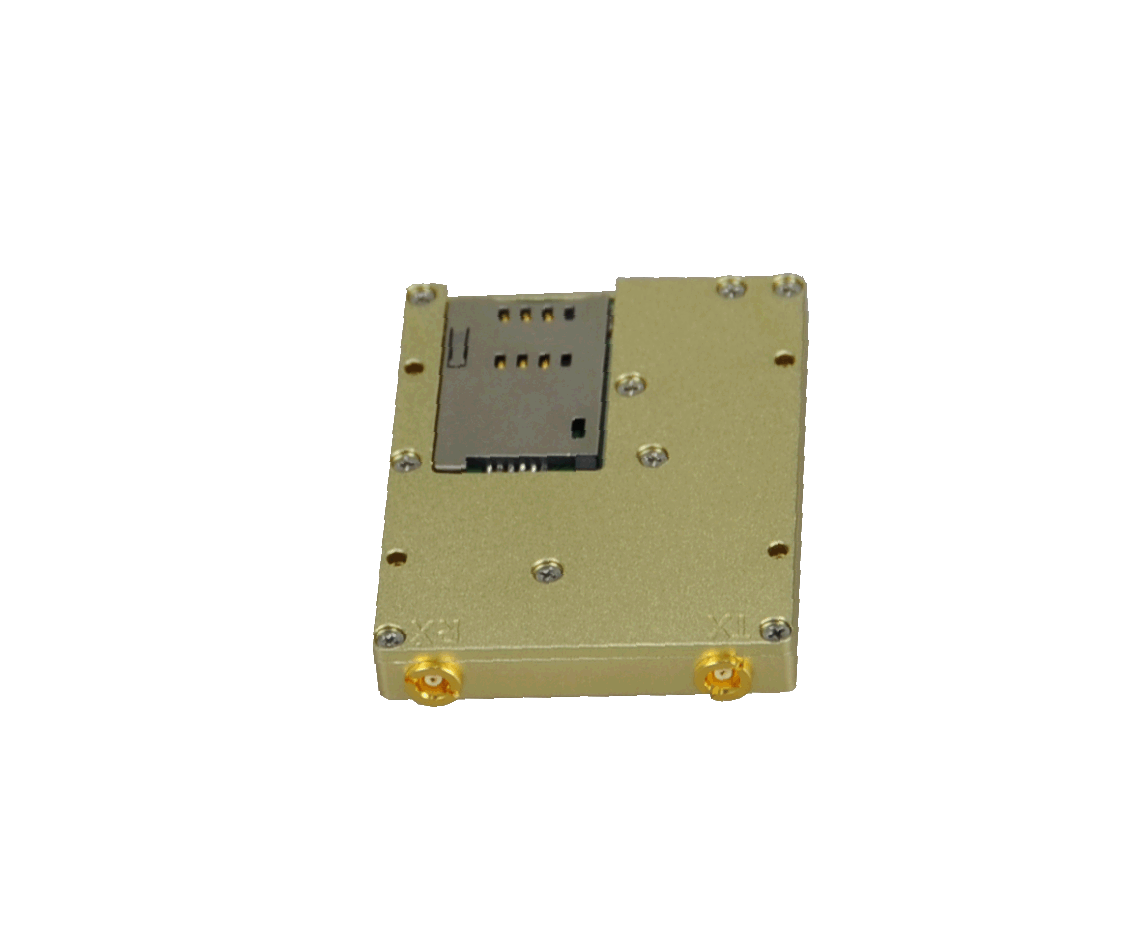

BeiDou transceiver module

ZYSXX-F715

    The 5W is a four-in-one BeiDou transceiver module designedfor vehicle navigation monitoring, marine fisheries management,meteorologicalobservations, Telecom/Timing servicesin-store and individualhandset applications,etc., This is the smallest BeiDou 1 model on the markettoday, and its high integration and low power consumption means that it canmeet the requirements for mass Beidou applications.

Technical Index

Electrical

Parameters



Receiver carrier frequency



2491.75MHz±4.08MHz

Launcher carrier frequency



1615.68MHz±4.08MHz

Receiving sensitivity

-157.6dBw

Timing accuracy

≤100ns

Positional accuracy

100m

Receiving Performance

Initial catching time

≤2s





≤3°

Losing lock catch time

≤1s

Carrier Suppression

≥30dBc

Dynamic range

300Km/h

Communication capability

120 characters or 420 BCD code



Number of reception channels

6

Transmitting power

5W

Success Rate

Positioning

≥99%

Communication

≥99%

Operating Voltage

5V

Operating Current

<200mA

Structural characteristics

Working environment

Storage temperature

-55~+85

Operating temperature

-40~+85
