GNSS Data Collection

GNSS data collector

ZYSXX-M001

    Our GNSS data collector has a built-inhigh-performance processor, a wireless GPRS module and high-capacity SD memorycard.It can reach a maximum 20HZ data sampling rate and the collected data canbe stored within the collector or through mobileor wireless network,allowingreal-time data transmission.

   Compared toa traditional GPS data collector, ourdevice is more suitable for outdoor stand-alone operation, which makes itespecially suitableforcivil engineering applications, such as monitoring ofbridges, buildings and concrete dams.

Technical Index

Frequency Range

GPS L1/L2, GLONASS L1/L2,B1/B2

Impedance

50Ω

V.S.W.R.

≤1.5

data sampling Frequency

1HZ,5Hz, 10Hz, 20Hz as optional

Positionaccuracy

Static mode

≤2.5mm

Kinematic Level

≤10mm

Elevation

≤5.0mm

Elevation

≤20mm

Static initialization time

<10min

Initialization reliability

>99.9%

Input/Output format

RINEX,BINEX

Data  Recording

Built-in storage capacity:1GB

SD card capacity 2GB

Connector

Serial

Two 5 core interfaces(RS-232):Data input and output

Two 10 core interfaces(RS-232):Connection to external devices

One 8 core interface (RS-485): Connection to external devices

Ethernet

One 10 core interface (data protocol: TCP/IP protocol)



One GPRS antenna interface

Operating Voltage

DC12-24V

Power consumption

≤4W

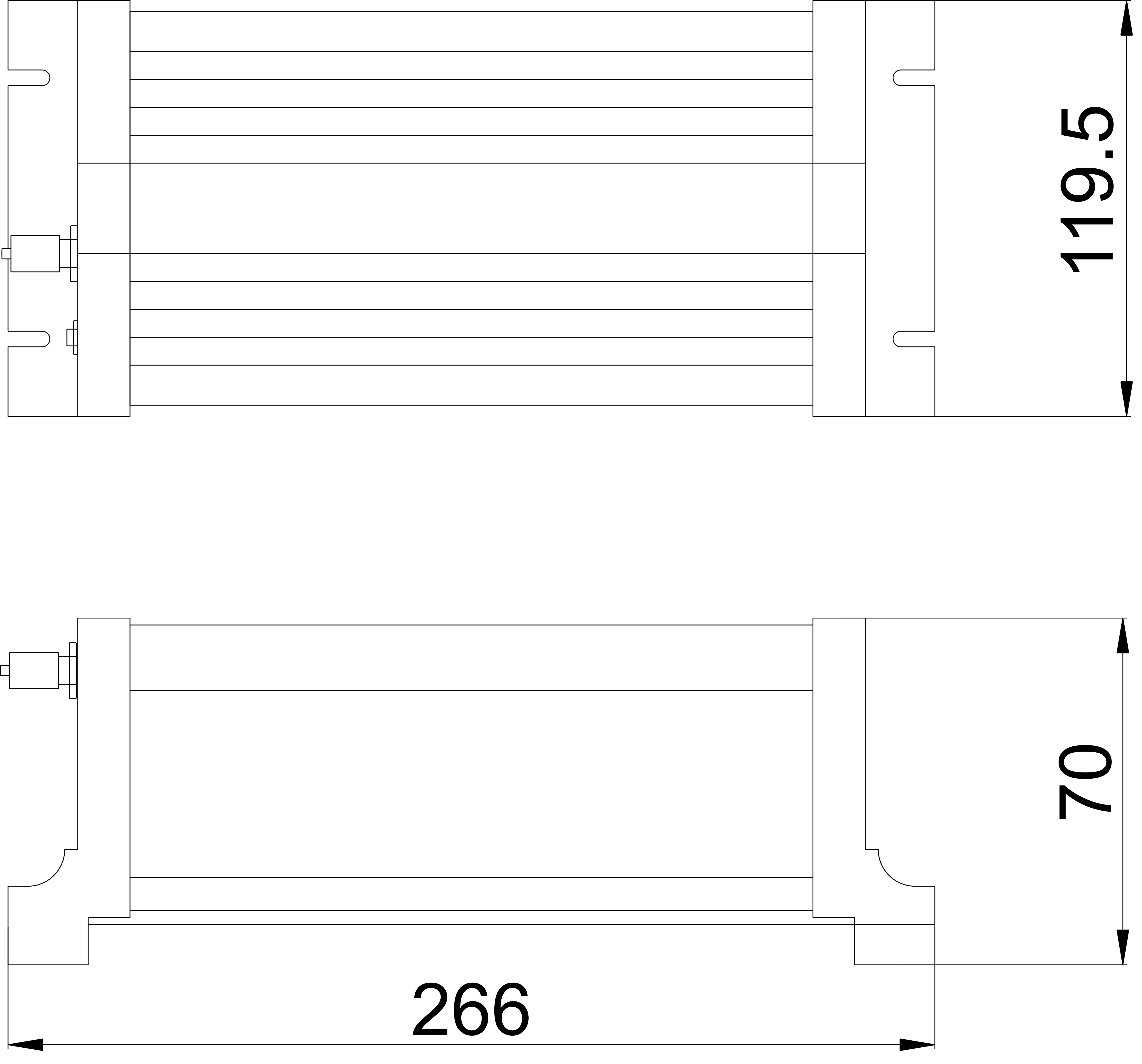

Structural characteristics

Working environment

Storage temperature

-40~+80

Operating temperature

-40~+65
