ZYAXX-S315/S005/S715

This series of antennas comprises:a single frequency GPS antenna, dual-satellite system(GPS+GLONASS) with singlefrequency antenna(L1);a dual-frequency GPS antenna(L1,L2),dual-satellitesystem(GPS+GLONASS)with dual-frequency antenna(L1,L2); a triple-satellitesystem(GPS+GLONASS+BeiDou)antenna as well as various other satellitecombinations and types of antennas. Any of these antennae can be widely used ingeodesy, marine surveying, tunnel surveying, earthquake monitoring, bridgedeformation monitoring, landslide monitoring, port container operations, etc. Toimprove measurement accuracy this series of antenna eemploys a multiplefeed-point design to ensure the coincidence of the antenna phase centre and thegeometrical centre. The antenna efeature: high unit gain, wide directionalpattern beam width, small size and light weight.

Antenna Characteristics

LNA

Frequency Range

B1/B2/B3

GPSL1/L2/L5、GLONASS L1/L2/L3

Galileo E5a/ E5b/ E6

Gain

26, 36 or 40dB(Optional)

Impedance

50Ω

Noise Figure

≤2.0dB

Polarization mode

RHCP

Output V.S.W.R.

≤2.0

Antenna axial ratio

≤3dB

In-band flatness

±2 dB

Horizontal coverage angle

360°

Operating Voltage

3~18VDC

Output V.S.W.R.

≤1.5

Operating Current

≤45mA

Gain method

≥5.0dBi

Differential transmission delay



<5ns

Phase CentreError

±2mm





Structural characteristics

Working environment

Storage temperature

-55℃~+85℃

Operating temperature

-40℃~+85℃

Humidity

95% no condensation

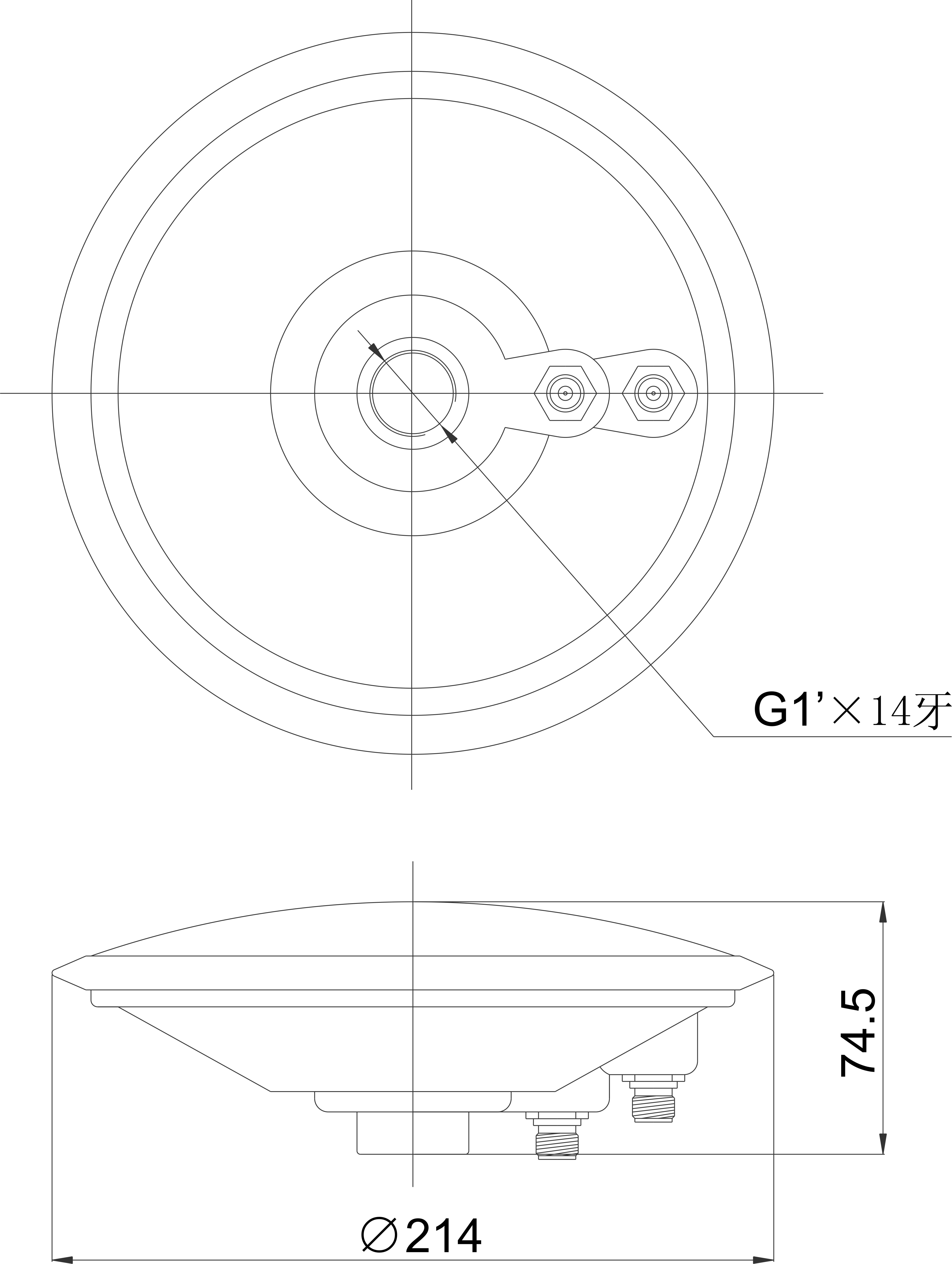

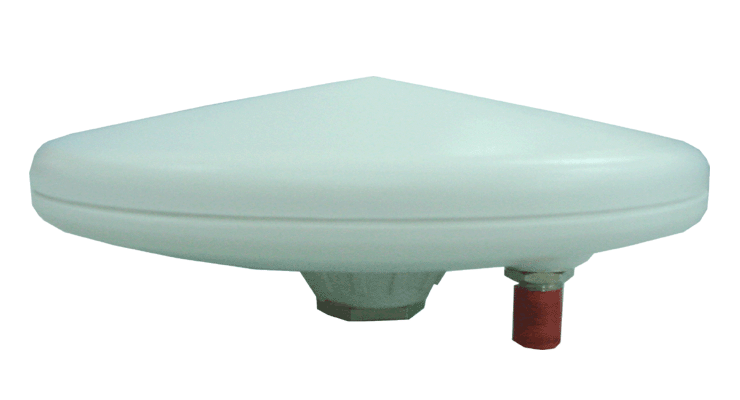

ZYAXX-S315

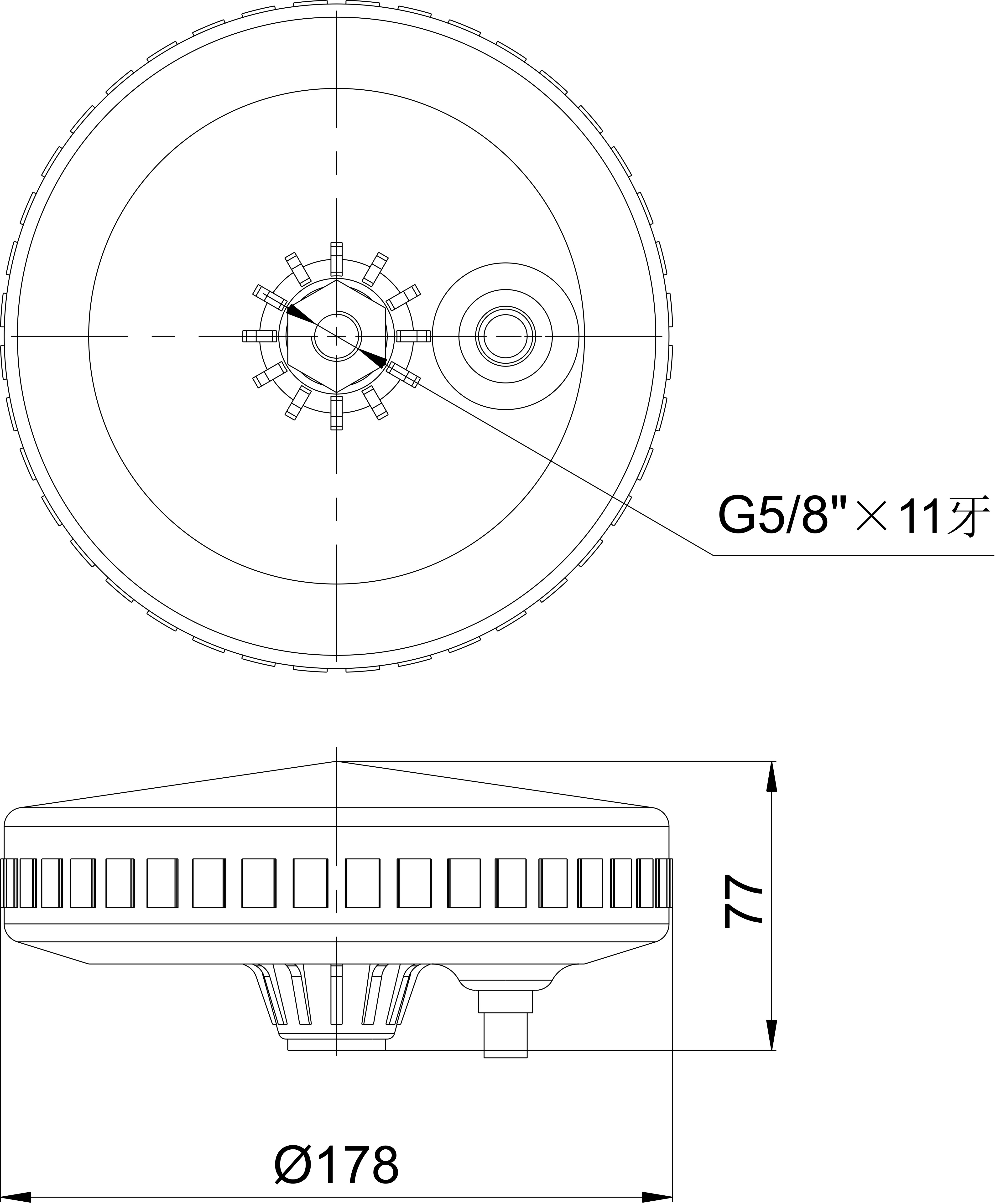

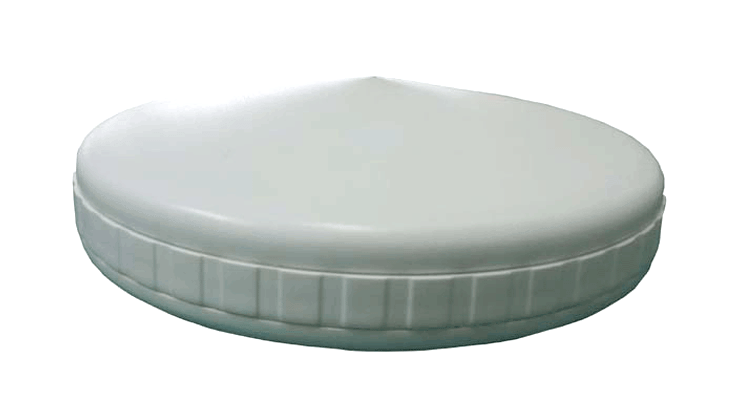

ZYAXX-S005

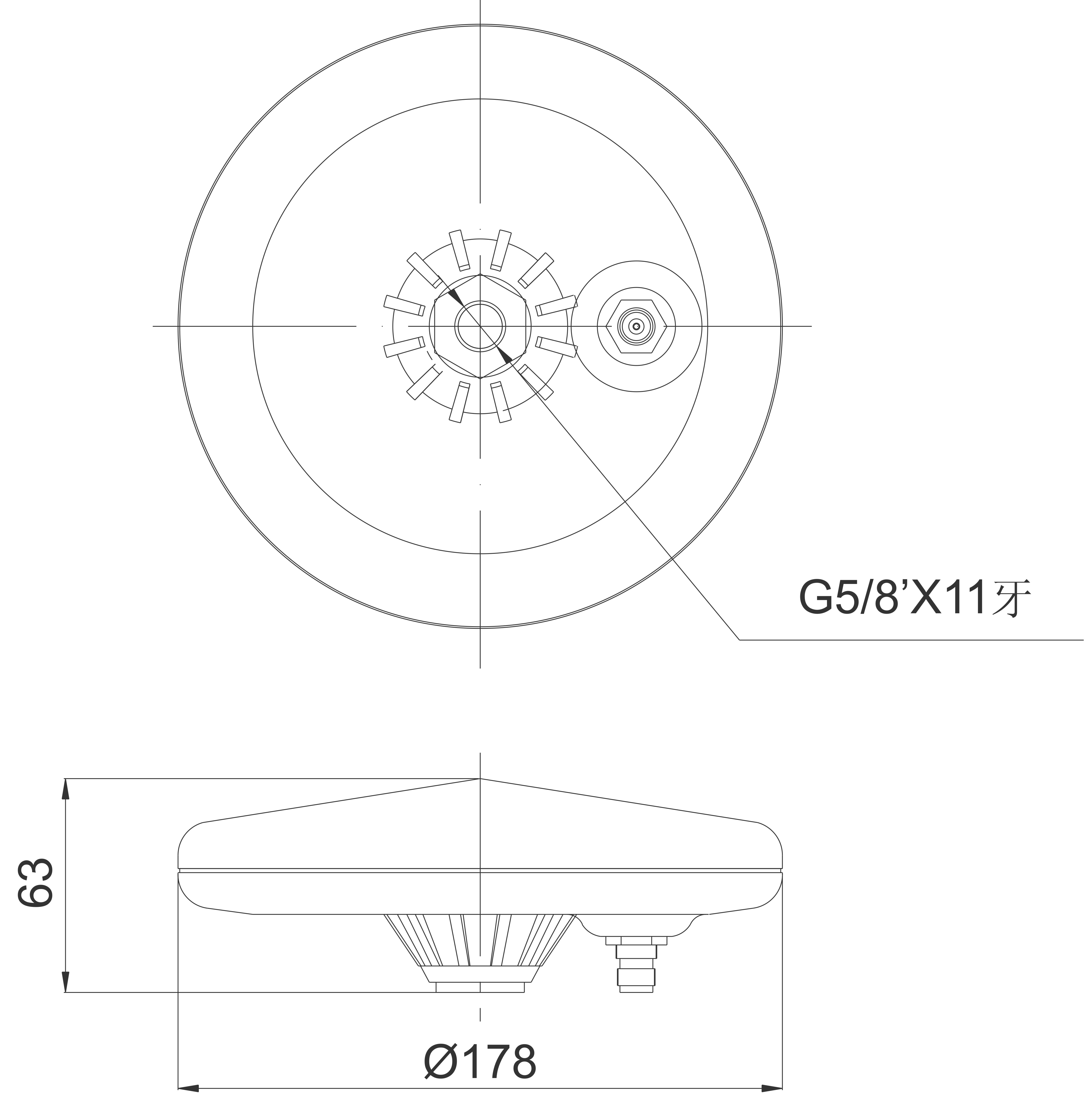

ZYAXX-S715
